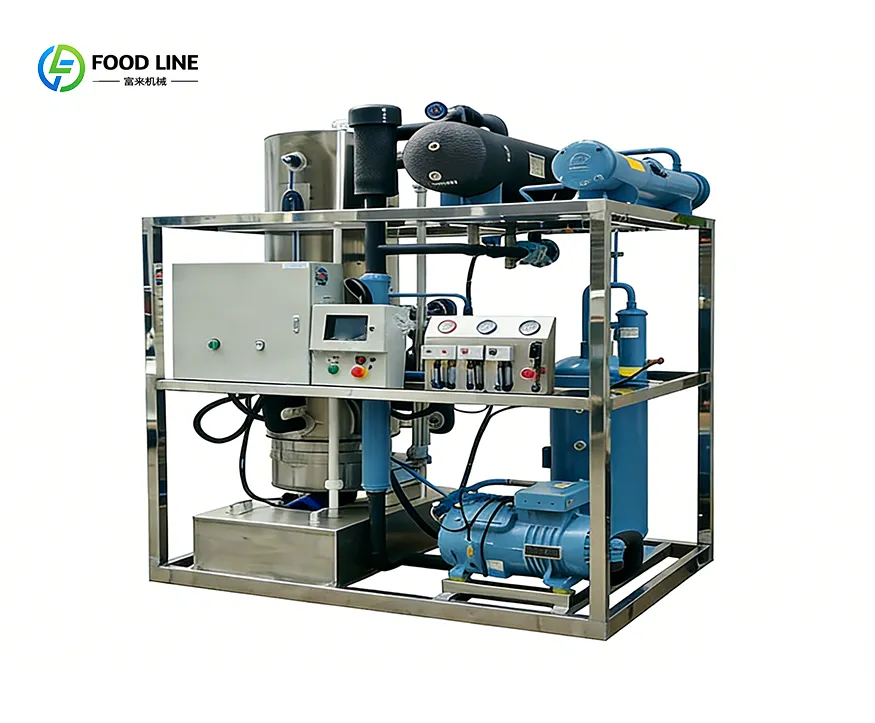

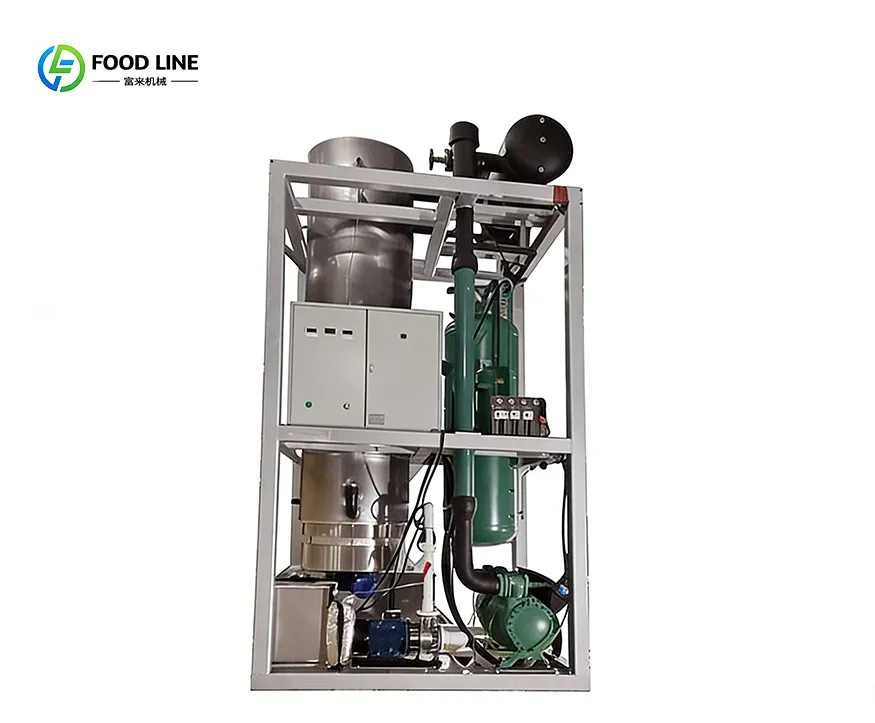

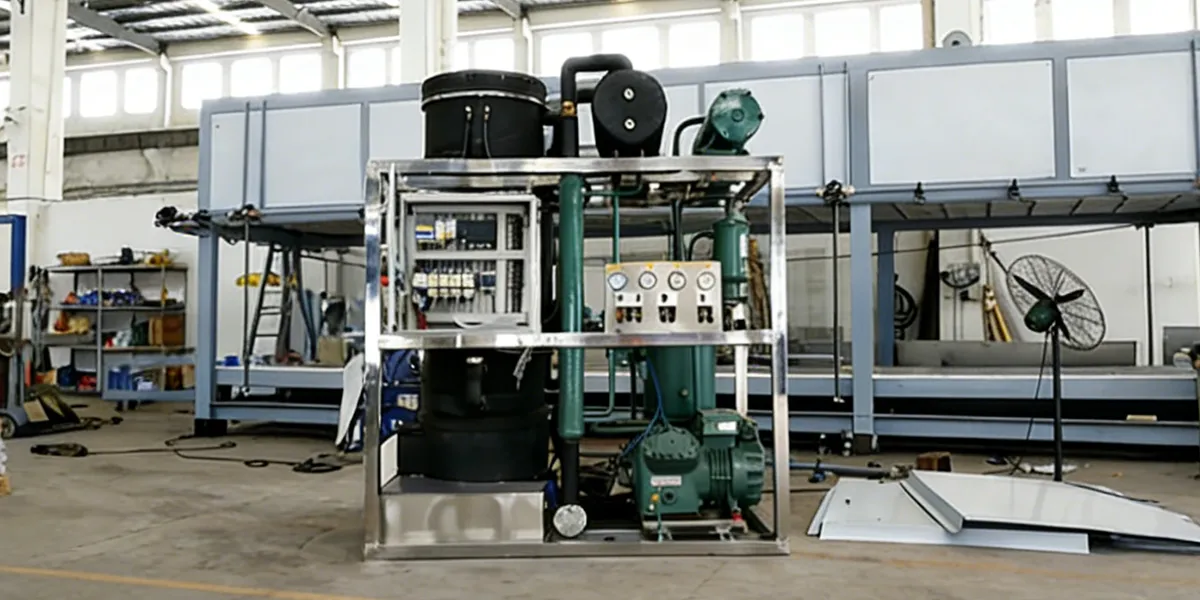

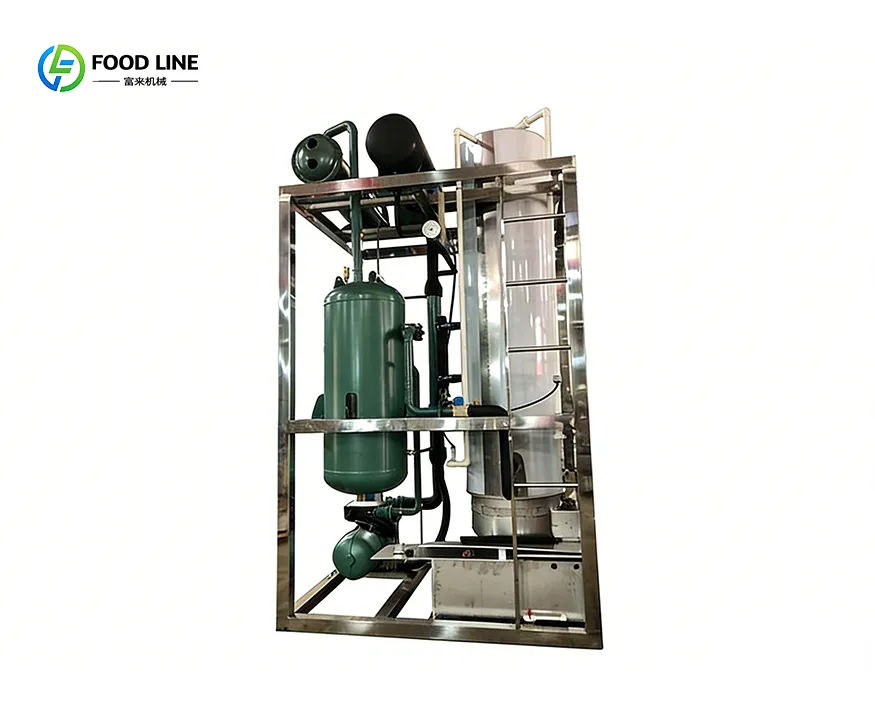

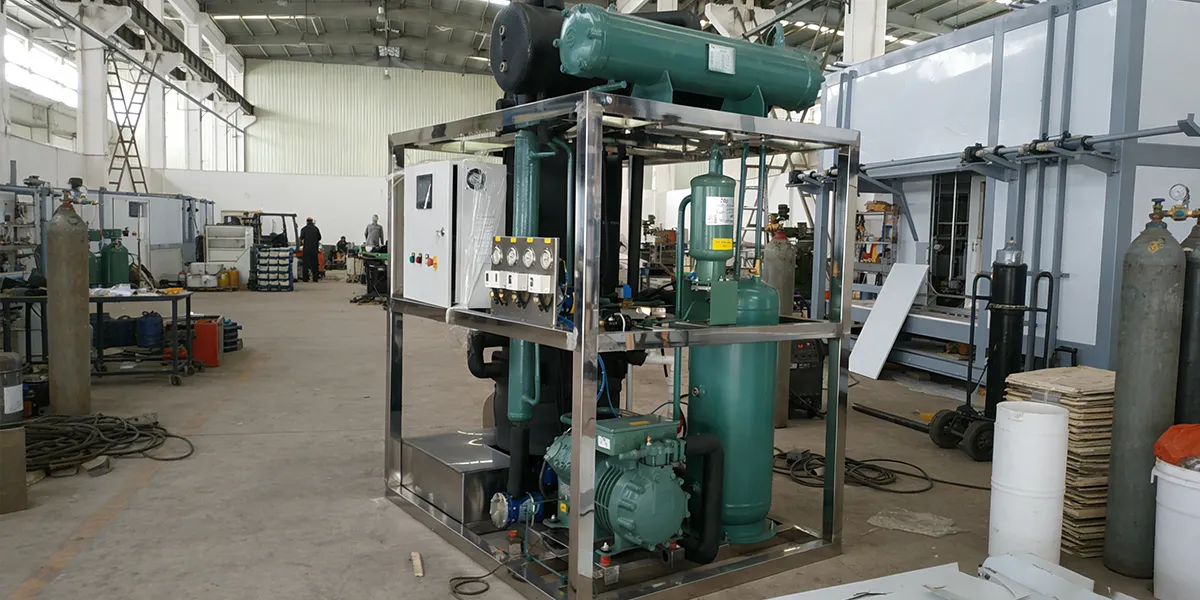

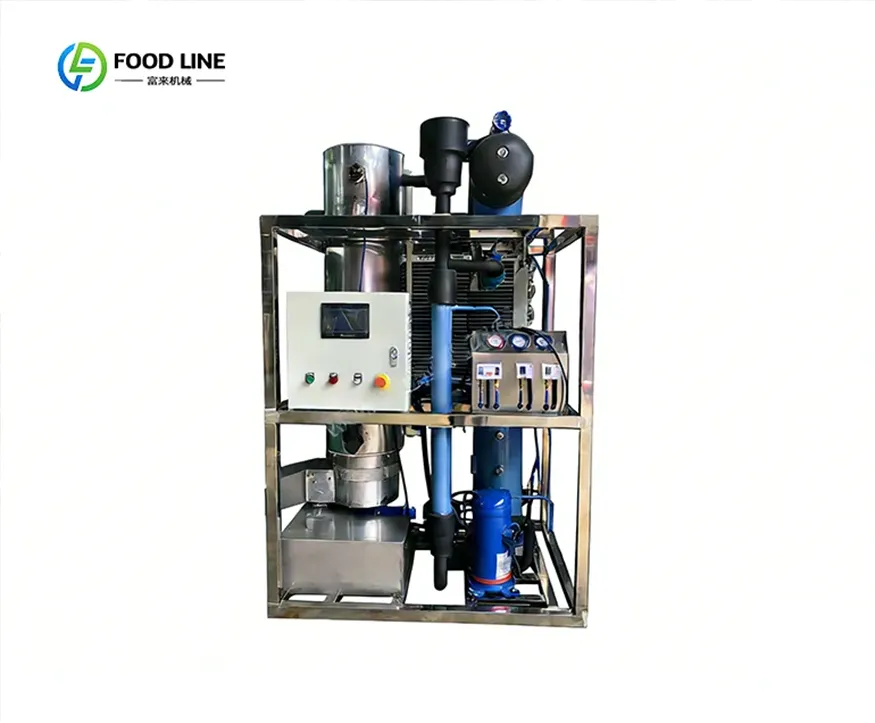

Our Tube Ice Machine features durable build, full automation & integrated design for easy operation. Fully customizable molds and ice specs for your unique needs.
Adjustable 1-30 tons daily ice
Non-stop reliable performance.
Key Features: ✔ Space-Saving Design: Requires only 4-5m² floor space ✔ Quick Startup: Produces first ice in <30 minutes ✔ Hygienic Construction: All food-contact surfaces 304 stainless steel ✔ Smart Controls: Digital thermostat with auto-defrost ✔ Low Noise: <60dB operation (quieter than conversation)
| Model | 1ton tube ice machine | 5ton tube ice machine | 20ton tube ice machine | 30ton tube ice machine |
| Output | 1t/24h | 5t/24h | 20t/24h | 30t/24h |
| Harvest cycles | every2-3h | every 90-120 min | every 20-40 min | every15-30min |
| Refrigerant | Air-cooled (standard) Micro-channel (for energy efficiency) | Air-cooled (standard) Water-cooled (tropical climates) | Water-cooled Air-cooled | Water-cooled Air-cooled Evaporative |
| Power consumption | 60-75kwh/ton | 55-65 kWh/ton | 60-70 kWh/ton | 65-75 kWh/ton |
| Dimensions | 1.5m(L) × 0.8m(W) × 1.6m(H) | 2.2m(L) × 1.5m(W) × 2.1m(H) | 3.8m(L) × 2.2m(W) × 3m(H) | 4.5m(L) × 2.8m(W) × 3.2m(H) |
| Cooling method | R404A (standard) R290 (eco-friendly) | Standard: R404A Eco-friendly: R513A /R448A | Standard: R404A Low-GWP: R513A/R454C | Standard: R404A/R507A Eco: R513A/NH3 syatems |
| Temperature | -3°C to -6°C | -4°C to -8°C | -6°C to -10°C | -8°C to -12°C |
| Diameter | Ø19-22mm (standard) | Ø22-25mm (standard) | Ø22-28mm standard | Ø25-32mm standard |
| Length | 25-35mm | 30-40mm | 25-50mm | 25-50mm |

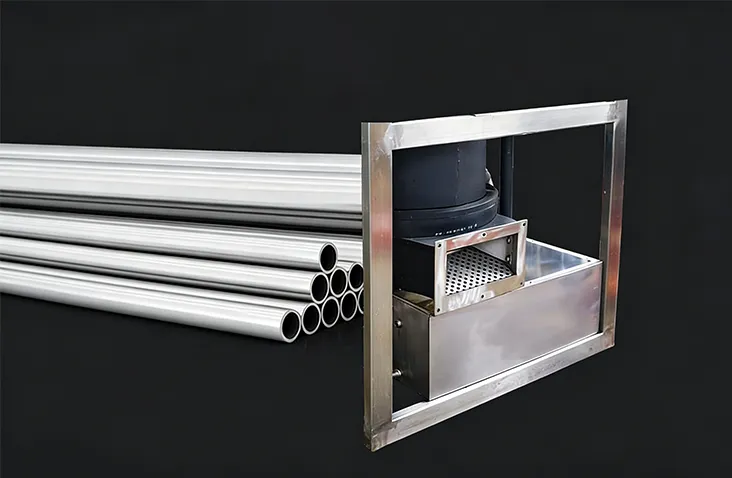

The tube ice looks like hollow cylinder,The inner diameter can be adjusted according to the tube ice making time. Custom ice size
Equipped with top-brand compressors from Panasonic, Embraco or Danfoss, ensuring powerful, stable and reliable core performance.
Crafted from 304 stainless steel food-grade material, the machine features scratch, fouling and rust resistance for long-lasting hygiene and durability.

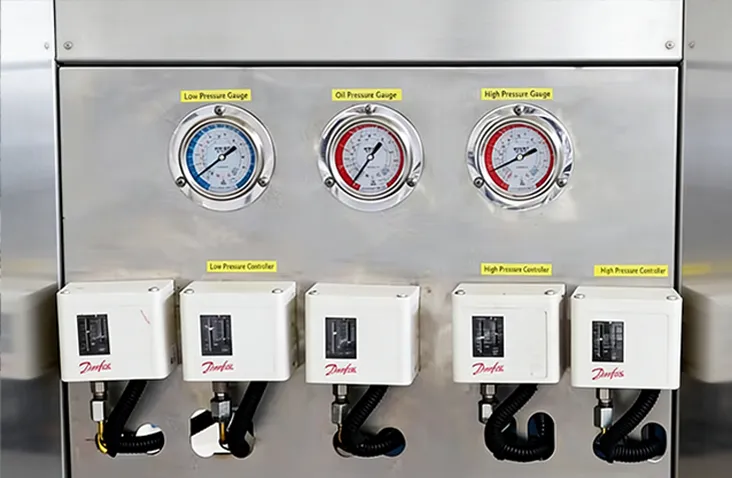

Comes with a professional pressure safety protection device for machine operation, eliminating hidden risks for assured use.

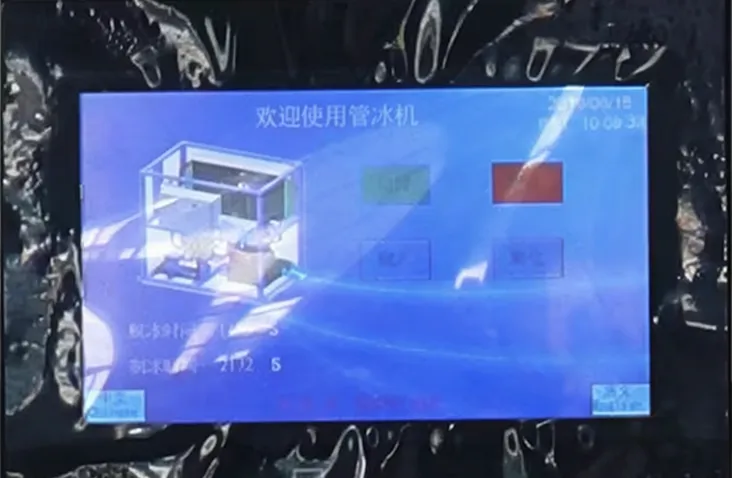

Adopts PLC intelligent control for the entire ice production process, enabling one-click simple operation with high automation.
