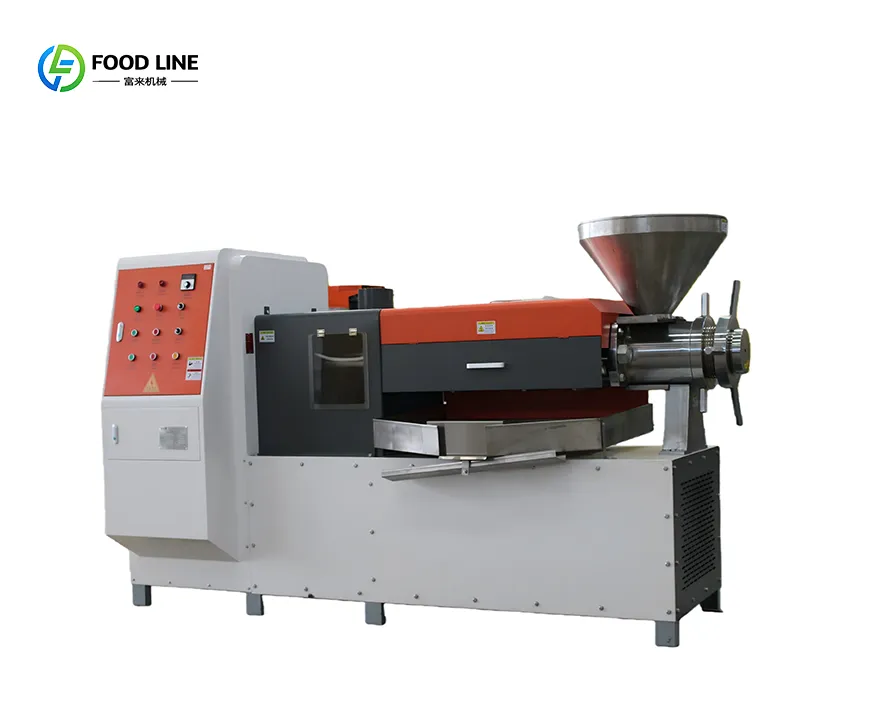

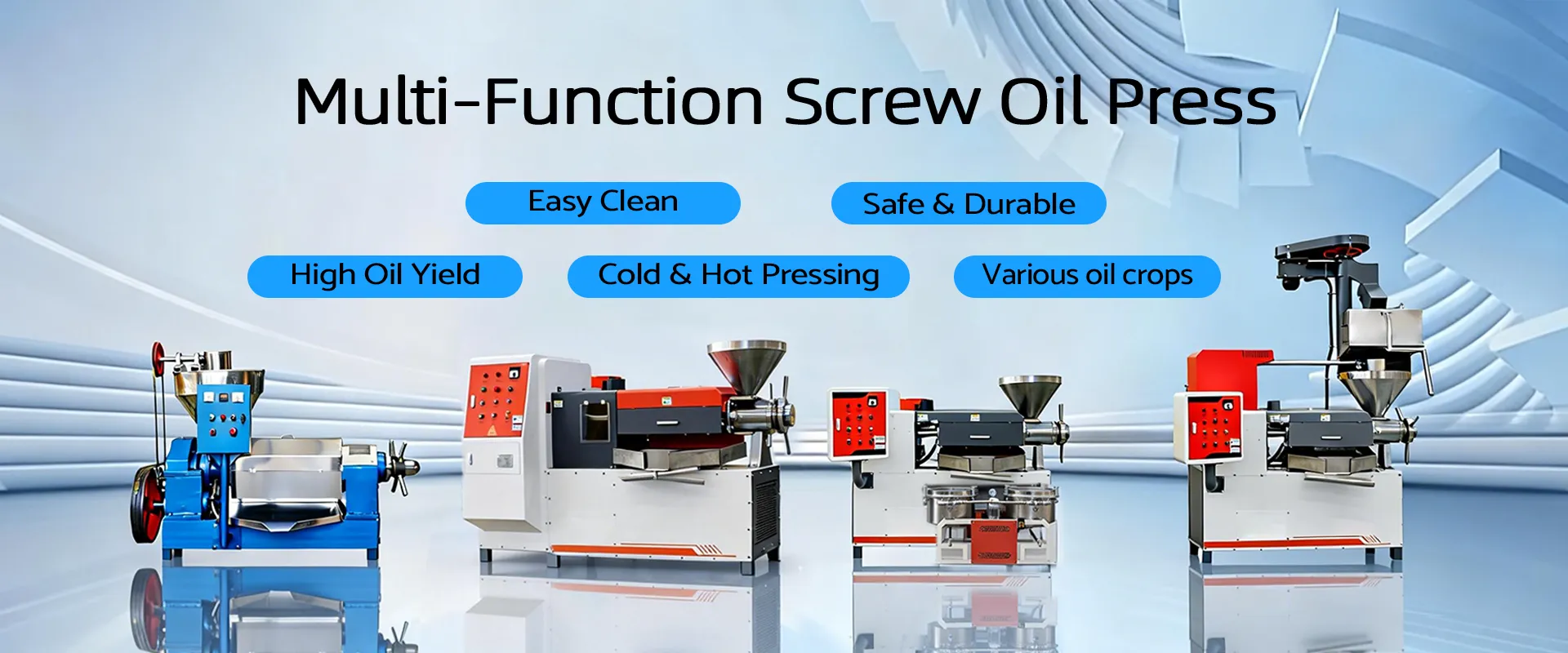

Optimized heavy-duty screw, auto temperature control, high oil yield, pure oil, low residue. Hot & cold pressing, direct feeding, continuous working, low power, stable & easy maintenance.
Various oil crops
60-850kg/h
Designed for small and medium oil mills, food processing plants, and commercial oil production lines. Suitable for a wide range of oil crops, including peanut, sesame, sunflower seed, soybean, rapeseed, mustard seed, coconut and so on.
| Model | 6YL-120ZD | 6YL-150ZD | BO150 | BO120 |
| Processing volume | 260-400kg/h | 400-500kg/h | 750-850kg/h | 250-300kg/h |
| Production capacity | 6-10T/24hrs | 9-12T/24hrs | 18-20T/24hrs | 6-7T/24hrs |
| Weight | 1020kg | 1810kg | 1230kg | 706kg |
| Power | 11kw-6P | 22kw-6P | 30Kw-6P | 11KW-6P |
| Dimensions | 2.06*1.34*1.57 | 2.70*2.91*1.63 | 2.18*0.80*1.29 | 1.87*0.45*1.12 |
Oil pressing video
The cake outlet ring is made of premium Cr12MoV chromium-molybdenum-vanadium steel, offering excellent wear and impact resistance. It ensures smooth cake discharge, reduces the risk of material blockage, and lowers long-term maintenance costs.

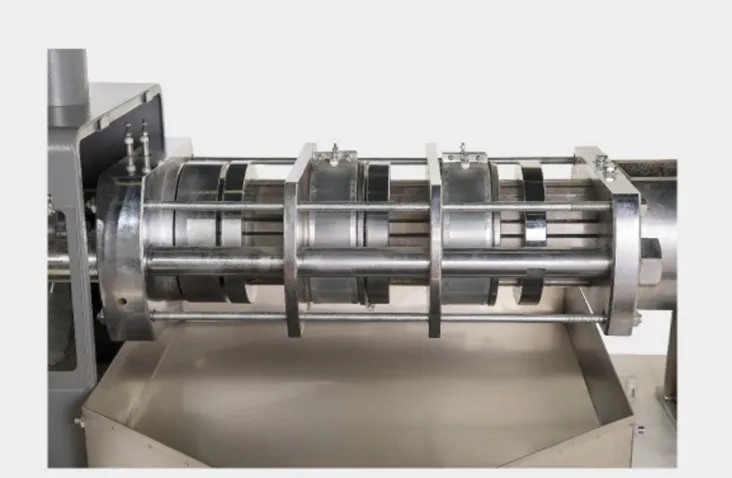

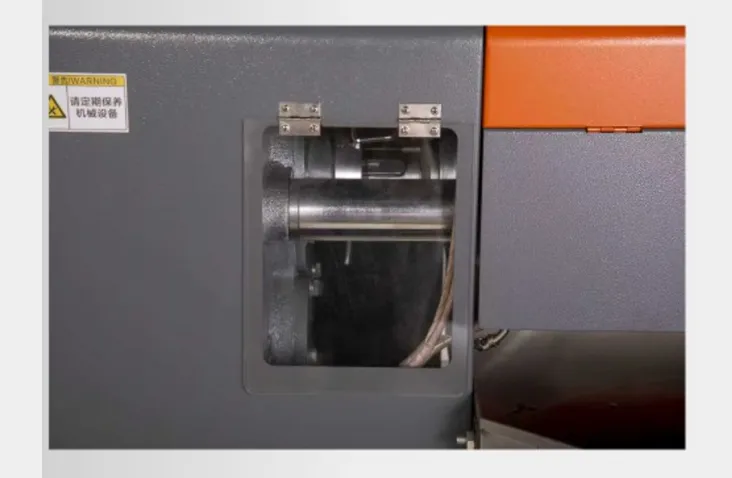

The high-strength screw pressing system features a hardness of up to 60 HRC, ensuring strong wear resistance and stable operation. It effectively prevents slipping during continuous pressing, enhances efficiency, and significantly extends the machine’s service life.

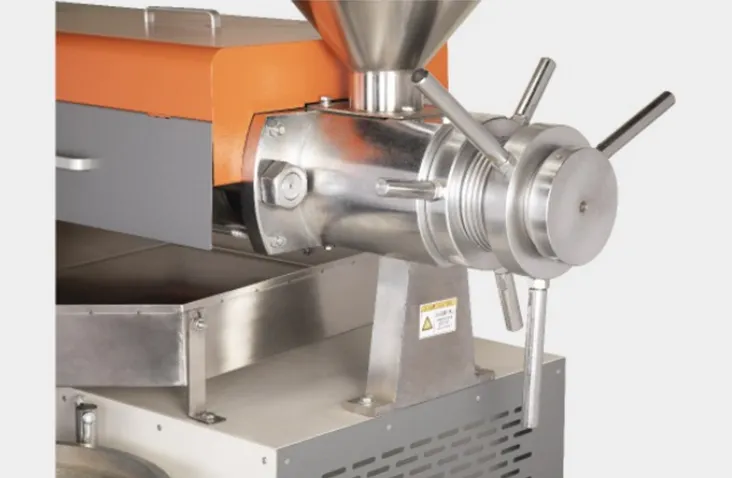

The precision extrusion adjustment system allows flexible control according to different raw materials. It ensures stable oil output, optimized pressing performance, and suitability for a wide range of oil seeds.

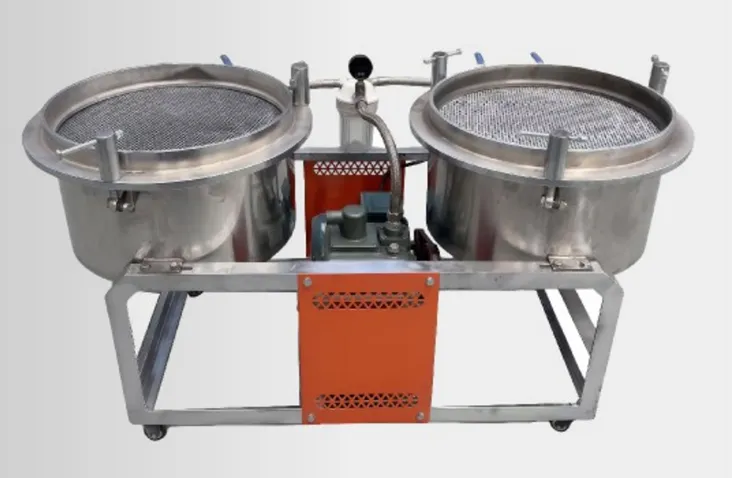

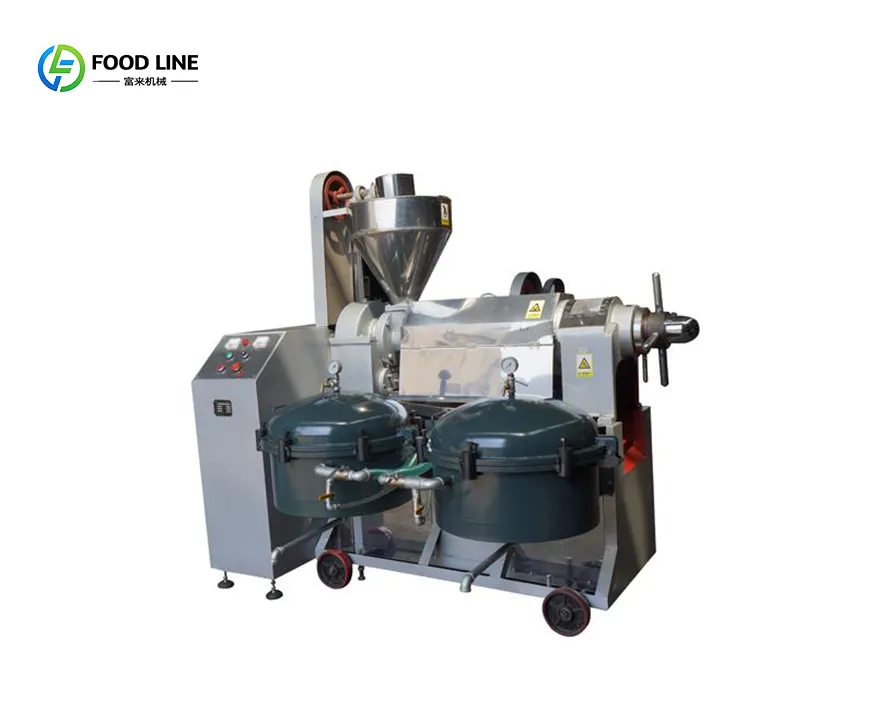

Equipped with a negative-pressure vacuum filtration system, the machine quickly removes impurities and moisture from the oil, improving purity and clarity. The dual oil tank continuous filtration design increases productivity, while food-grade stainless steel construction ensures hygiene and corrosion resistance.
