Our coffee roasting machine delivers even, stable roasting with advanced drum and hot-air technology for rich coffee flavor. Equipped with intelligent PLC control, it ensures precise temperature and time adjustment. Ideal for cafés and industrial production with customizable solutions.
Main Products: 1-360kg coffee roasters, destoners, after burner grinders, beansilos, cafe-viewable roasting lines, industrial fully automatic roasting lines, instant coffee production lines, nut roasters, and low-temp grain roasting lines with IOTG turnkey project. (consulting/design/manufacturing/installation) Main Features: 1.All new generation roasting curve one 2.Certifications: CE, ISO9001, SGS, TUV. 3.Siemens PLC. Smart computer control system. 4.Available in fully automatic, electric-heated, gas-heated, and dual-fuel (electric/gas) heated versions. 5.Gas models feature cast-iron blue-flame burners; Electric models utilize quartz-carbon heating elements. 6.Double-layer inner drum made of Japanese 310 stainless steel. 7.Imported parts 8.Color customized 9.Original manufacturer 10.Independent research and development curve + artisan curve synchronization. Support storage of baking curves 11.Fully automated coffee roasting production line, precisely controlling time, temperature, and flavor. 5-100T/D Output
| Model | Gas/Electric Commercial Coffee Roaster Machine | ||
| Batch capacity | 6kg | 50kg | 120kg |
| Heating type | Electric/Gas(natural/LPG) | LPG/LNG | LPG/LNG |
| Control unit | Manual/PLC(Optional) | Manual/PLC(Optional) | Manual/PLC(Optional) |
| Roasting type | Semi-Hot Blast, Half Direct Fire | Semi-Hot Blast, Half Direct Fire | Semi-Hot Blast, Half Direct Fire |
| Roasting time | 8-15 minutes/batch | 12-18minutes/batch | 12-18minutes/batch |
| Temp range | 0-300°C adjustable | 0-300°C adjustable | 0-300°C adjustable |
| Power consumption | 15kw/1.0kg/h | 5.7kg/h | 22kg/h |
| Motor voltage | 220v 100w*2pcs | 380v 1100w +1100w | 380v 5500w + 2200w |
| Fan volotage | 220v 370w *2pcs | 380v 2200w *3 pcs | 380v 2200w+ 4400w*2 pcs |
| Cooling time | 1-2minutes | 3-5minutes | 3-5minutes |
| Machine dimension | 2000*900*1600mm | 2100*1500*2250mm | 2800*1900*3500mm |
Commercial coffee roaster machine
Double-layer cast-iron drum: Ensures uniform heat conduction and superior heat retention, preventing roasting defects such as surface scorching or burning.

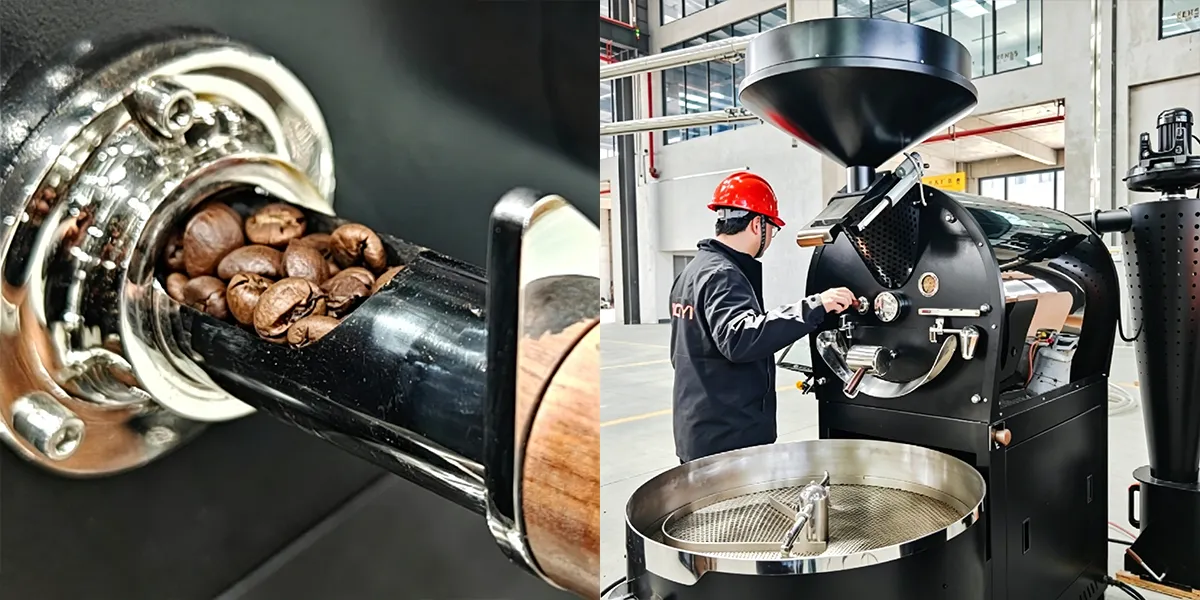

User-friendly operation: Equipped with an observation window, sampling trier, and variable control system.
New premix combustion system: Ensures thorough gas-air mixing and combustion, resulting in low carbon emissions, pure and rich coffee flavor, energy efficiency, and enhanced quality.
——Cast iron material for drum andcover structure——
Constant temperature heating up, great stability efficiency, control and asuperior coffee roast performance, suitable for all kinds of coffee beans.
——Automatically repeat roasting profile——
PRO: Copy the curve and manually control tocreate the flavor you want.
ULTRA: Automatically repeat the roasting profilewith an accuracy rate of over 98%comparable to certified bakers.
——Optional accessories for coffee roaster——

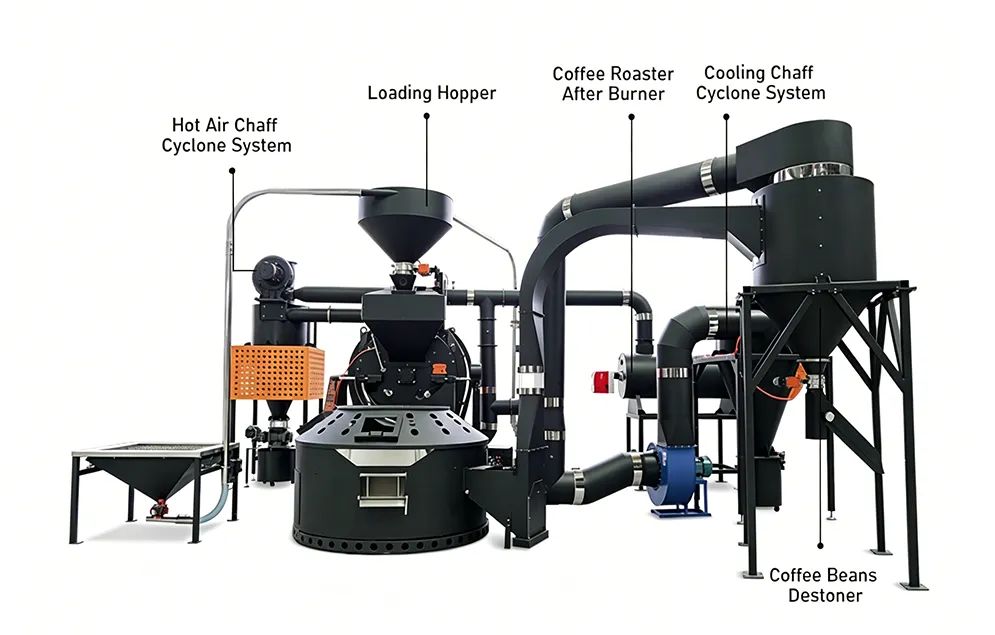

Foodline coffee roaster support to combine de-stoner, grinding system weighing proportion bean silo system, Customize fulyautomatic modular roasting line solution according to your needs
(IF YOU HAVE A PLAN, WE ARE THE PARTNER YOU NEED)
