Boost your bakery's productivity with a fully automated donut production solution. Engineered for efficiency, consistency, and easy operation, our production line helps manufacturers achieve higher output, lower operating costs, and premium donut quality.

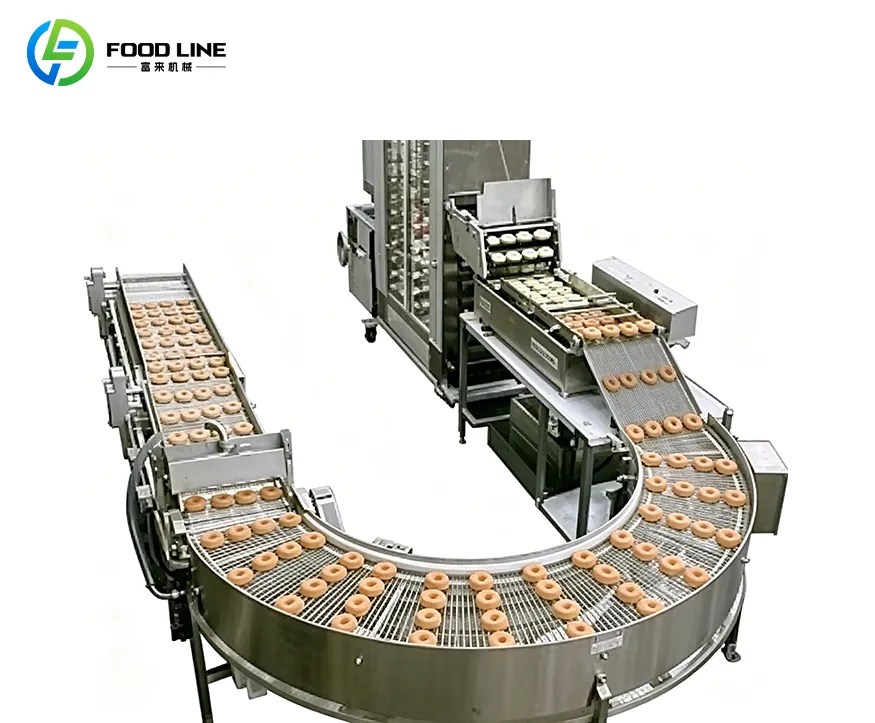

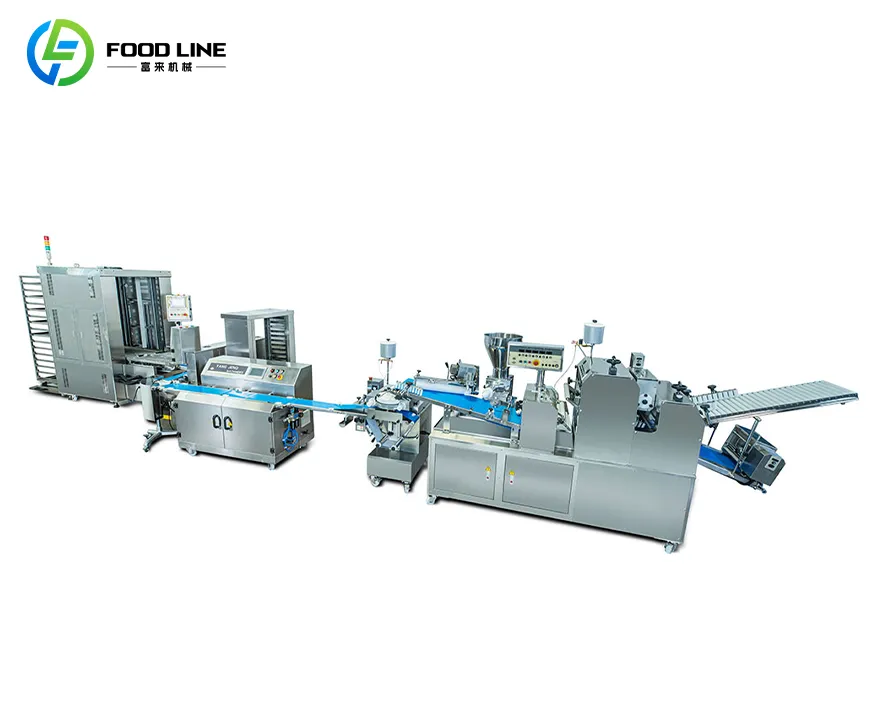

Automatic Donut Production Line is a fully automatic food processing solution designed for manufacturing producing various types of donuts—including ring donuts, spherical donuts, filled donuts, French-style donuts, coated donuts, yeast-raised donuts, cake-style donuts, and chocolate donuts, and premium bakery snack products for industrial food factories and global bakery brands. The production line can automatically complete dough mixing, dough feeding, donut forming, proofing, frying, oil filtering, cooling, filling, glazing, decorating, conveying, arranging, and packaging processes, producing donuts with soft texture, stable shape, uniform color, and consistent product quality. Customizable production capacity ranging from 400 to 9,000 pieces per hour.

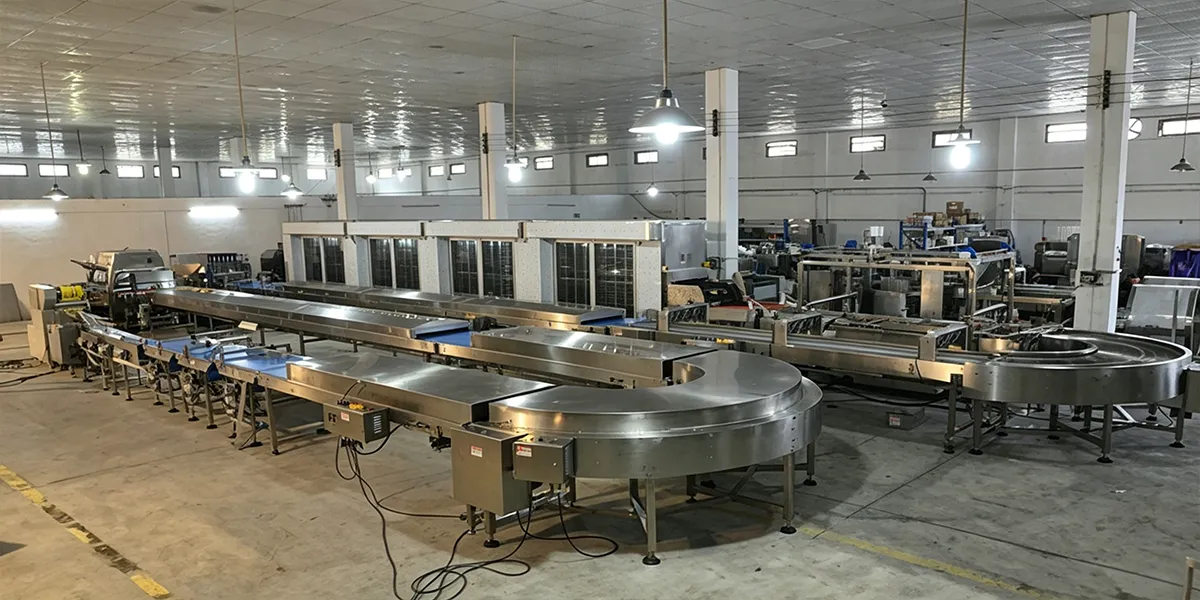

Product Case：3000pcs/h Full Automatic Yeast Donut Production Line

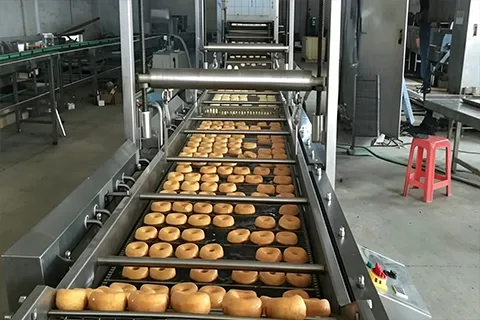

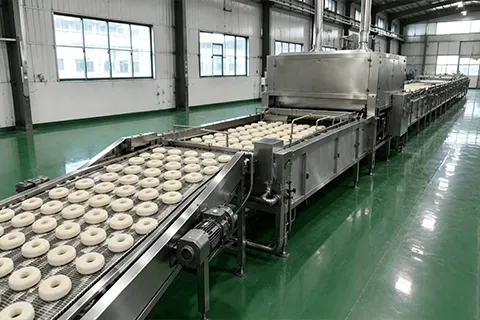

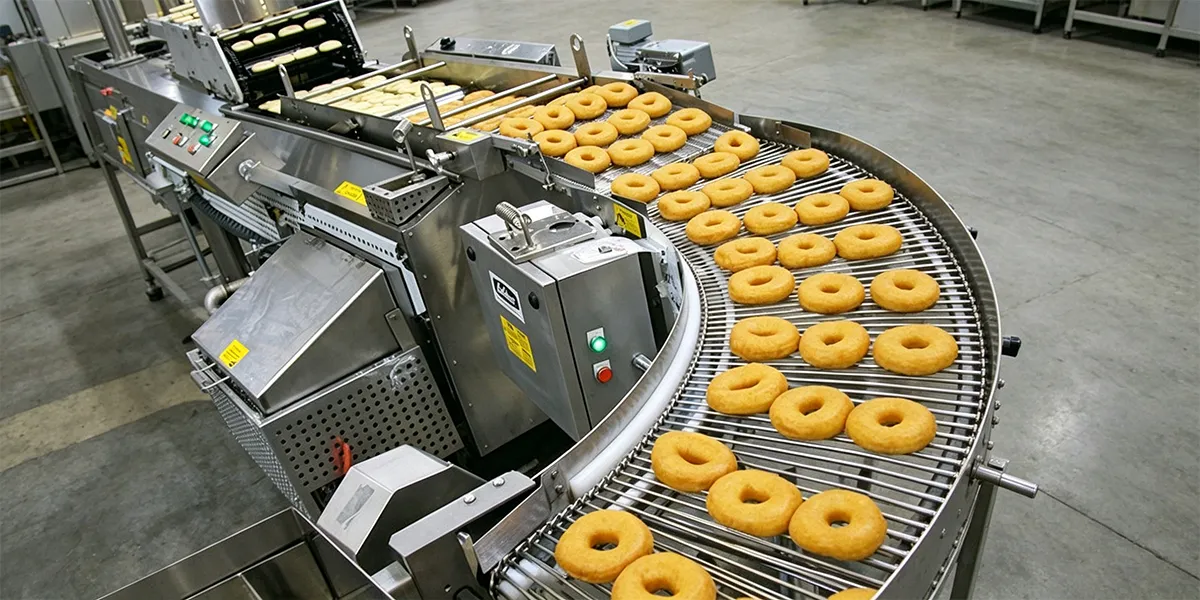

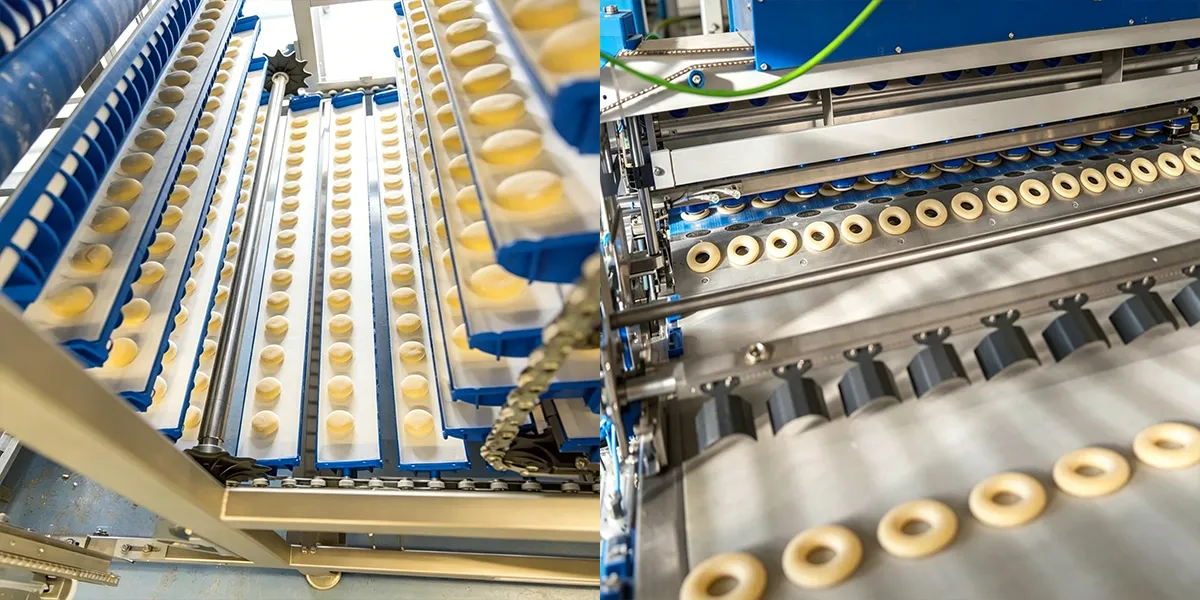

Donuts are automatically cut directly by press cutting donut machine. Them it will automatic full onto the proofing trays. The trays are then automatically carried through the electronically controlled proofer. Then the proofed donuts are sent to fry. The proofers are at a speed synchronized to the fryer, and cooling conveyor, ensuring high quality of each donut.
Working process:

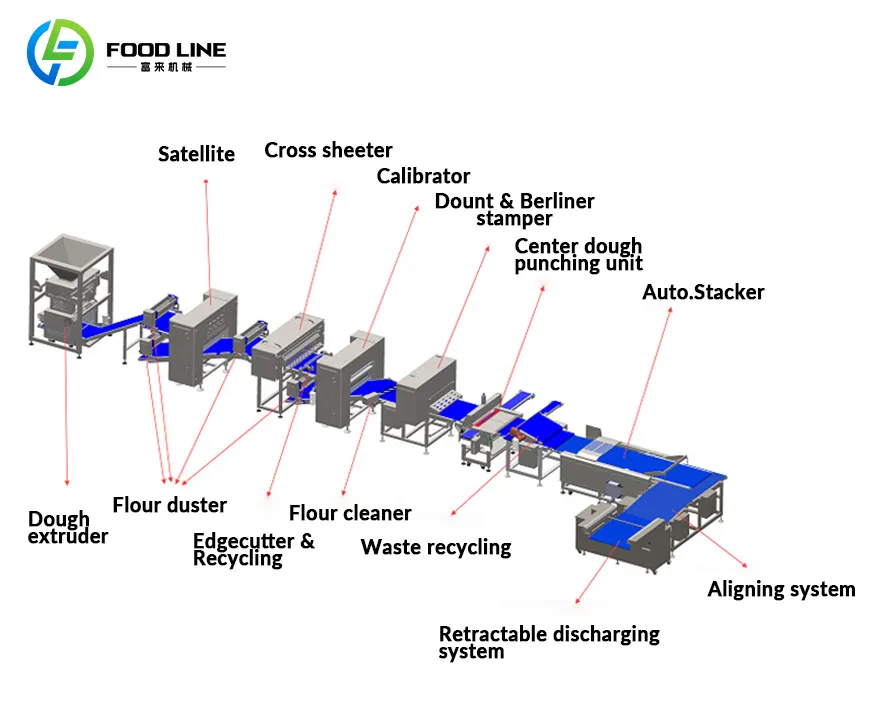

Mixing Flour → Hydraulic Dough Divider → Dough sheeter → Pressing Stamp machine → Proofing→ Frying
Equipment list:
| Machine | Technical data |

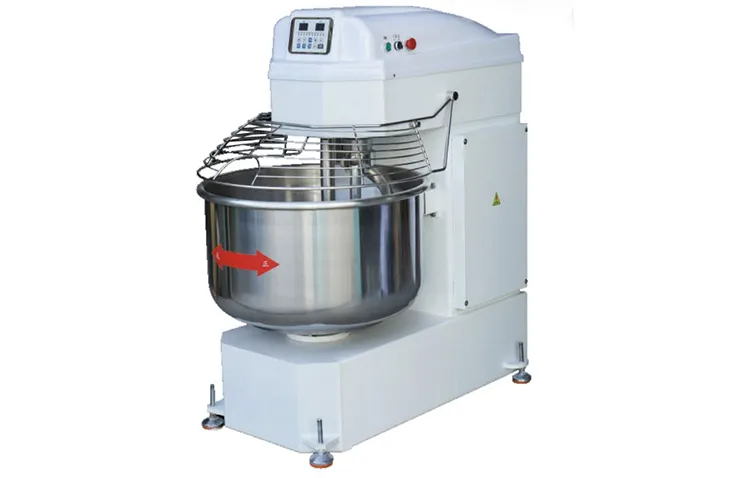

| 120L Dough mixer | Mixing speed:107/210r/min Bowel speed: 16r/min Production: 50kg/h |
| Hydraulic dough Divider | Voltage: 380V/50HZ Power: 1.5KW Quantity: 20 |
| Dough sheeter | Voltage: 220V Power: 1.1kw Dough Thickness:1-60mm |
| Thickness fixing machine (OPTIONAL) | Voltage: 380V/0.73KW |
| Donut Pressing Stamp machine | frequency conversion automatic speed regulation; Quick change of cutting tool |
| Center waste dough collector | Speed regulation 8-20M/min Many belt delivery donut into different direction |
| Automatic Sorting conveyor | Automatically deposited on the proofer trays |
| Proofer | Temperature range 35-40℃ Humidity range 60%-85%, adjustable Proofing time adjustable Touch Screen Accurate settings for temperature and humidity Clear door will be easy to know the status |

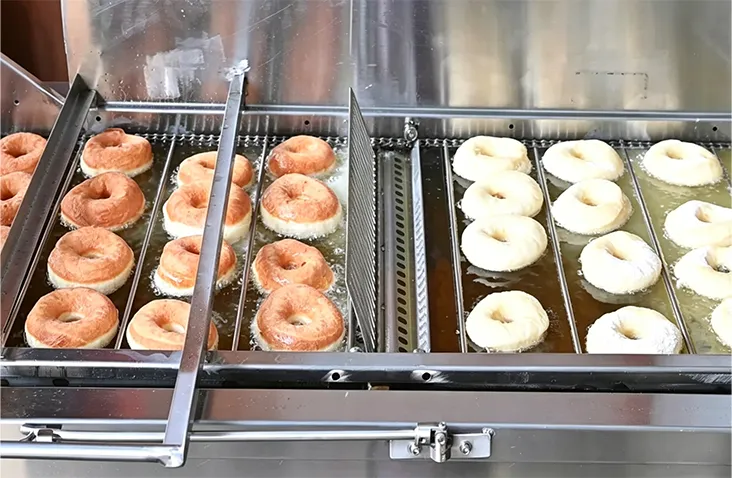

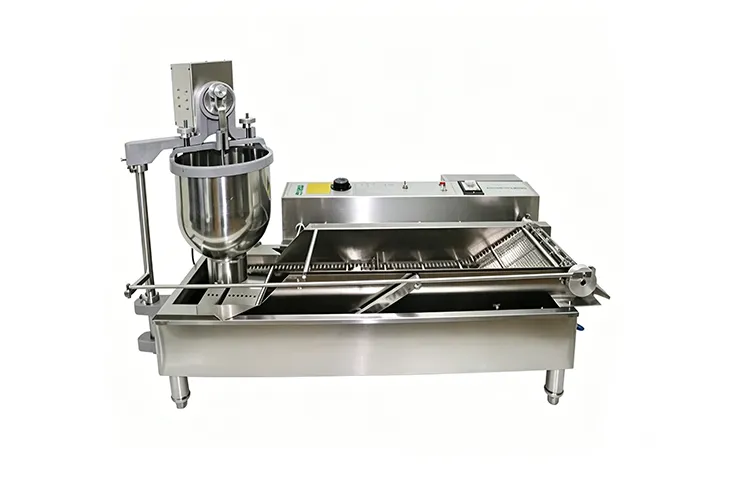

| Electric Fryer | Microcomputer temperature control and frying time control Temperature: Max 200℃, Frying time 45s, adjustable Life:5-10 years |

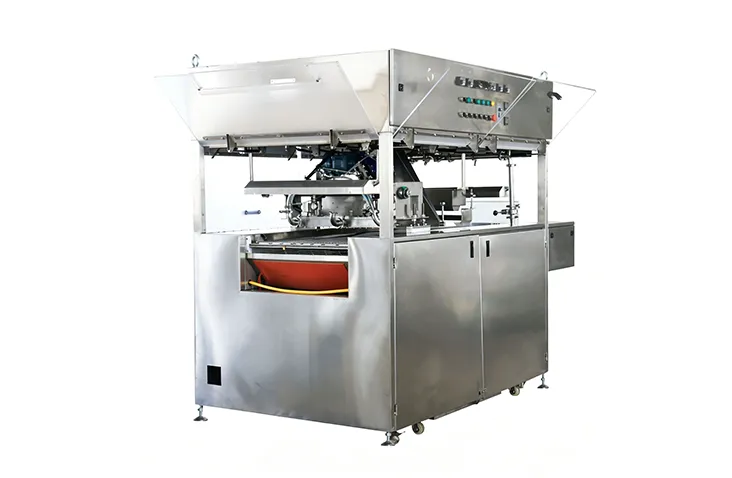

| Chocolate enrobing machine1000mm | Chocolate enrobing machine 1000mm 15 meter cooling tunnel of enrober 304 stainless steel Carbon steel heat-preservation |
| Chocolate Holding Tank1000L | Output:1000 KG/H Main motor power:2.2 kw Electric heating power: 4 KW All stainless steel and insulation steel DanMark Grundfos Brand Water Pump Electrical part use Siemens Brand |
1.Fully Automatic Production
Fully automatic and semi-automatic options available.
2. Stable Product Quality
Uniform donut size
Stable donut shape
Consistent frying color
Stable filling quantity
Suitable for industrial continuous production.
3. Flexible Product Solutions
Different product sizes, shapes, toppings, and flavors can be customized according to customer requirements.
4. High-Value Bakery Snack Products
Donuts are widely used in:
Bakery food factories
Donut factories
Supermarkets and retail chains
Dessert factories
5. SS304 Food-Grade Design
All food-contact parts are manufactured with 304 food-grade stainless steel, complying with international food hygiene standards and ensuring easy cleaning and maintenance.

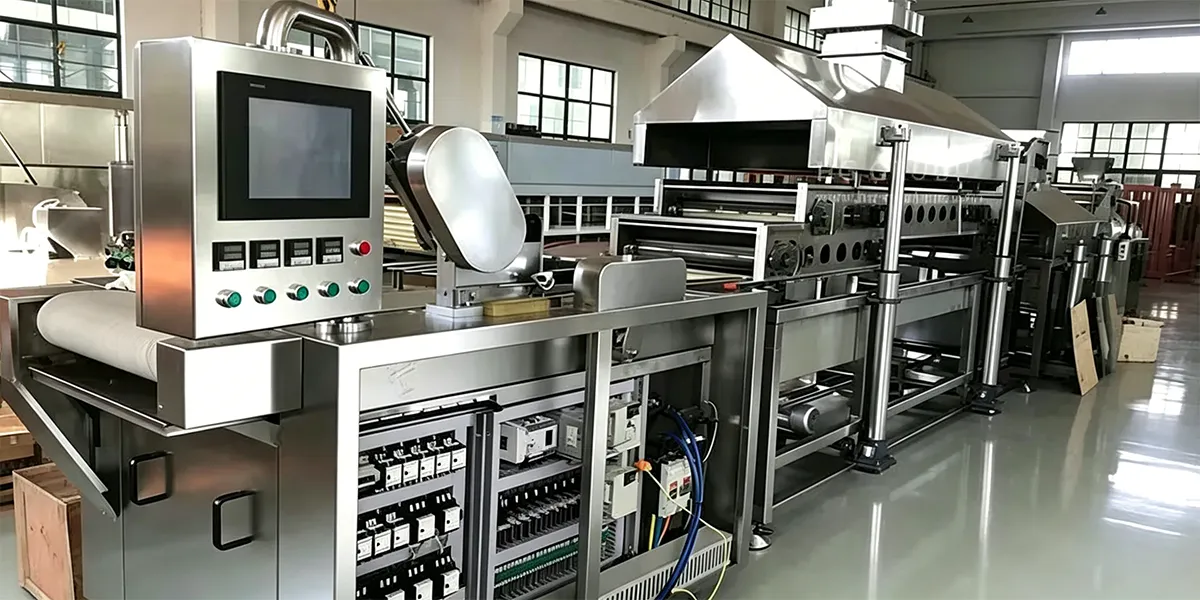

6. Intelligent PLC Control System
Foodline adopts intelligent PLC control systems and energy-saving frying technology to improve operational stability and reduce energy consumption.
7. Packing solutions
Foodline provides complete packaging solutions, Suitable for retail packaging and export markets.
8. Turnkey Factory Solution
We provide factory layout design, machinery manufacturing, installation and commissioning, engineer training, recipe support, long-term after-sales service, packaging solutions, and spare parts support.
9. Global Delivery
Foodline has over 20 years of experience in food machinery manufacturing and has exported to more than 100 countries. Physical running machines are available in Foodline factories, and customers worldwide are welcome to visit for machine inspection and product testing.
