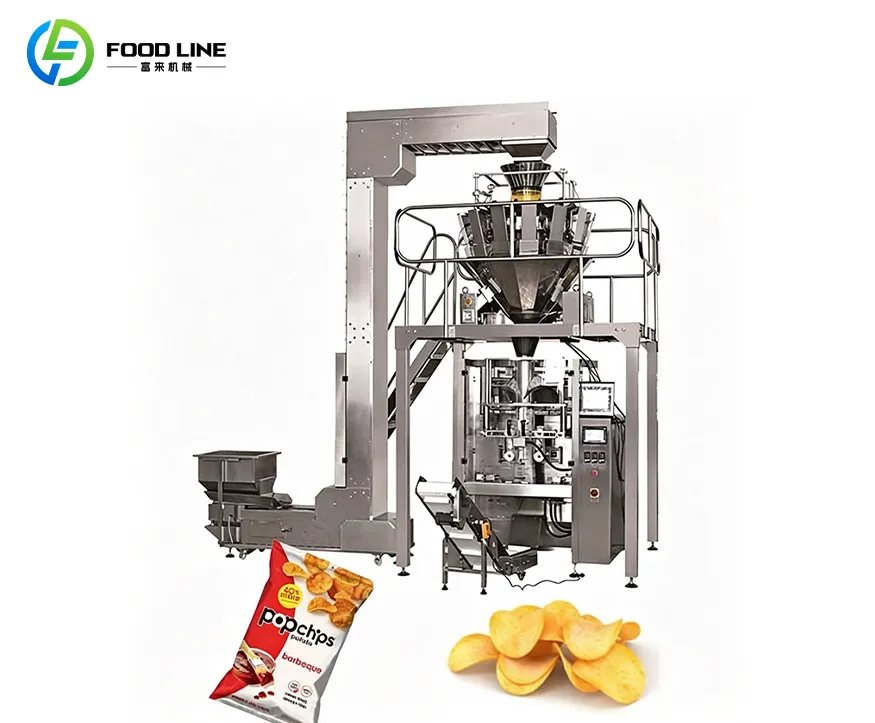

Our potato chips packing machine features a high-precision multihead weigher for fast, accurate packaging. With PLC touch-screen control, stable performance, and easy operation, it boosts productivity while reducing labor costs.
Automatic potato chips packaging machine is widely used in the automatic potato chips production line and frozen french fries line for packing potato chips and frozen fries. ●The automatic potato chips packing machine can realize the automatic process of feeding, bag making, filling, date printing, inflating, counting, and discharging. 1. The Multihead Weigher Packing Machine is a fully automatic solution for precise, efficient, and stable packaging of food, feed, and chemical granules. With ±1g accuracy, fast speed, and compatibility with stand-up and zipper pouches, it minimizes waste. Made of durable 304 stainless steel with PLC touch control, it is easy to operate and clean, meeting CE/ISO standards for reliable B2B production and modern food production lines. 2. Suitable Materials: Food granules: nuts, beans, candy, puffed snacks, grains, etc. Feed granules: pet food, poultry feed, fish feed, etc. Chemical granules: granular fertilizers, chemical raw materials, etc. 3. Compatible Bag Types: Stand-up pouches Zipper pouches Flat-bottom / square-bottom pouches Other common granule packaging bags (customizable) 4. Available with 8/10/12/14/16/20/24/32heads.
Working Process of Chips Packaging Machine
Feeding bag→Coding→Opening bag-Measuring and flling-Heat sealing→Shaping and finished product discharging

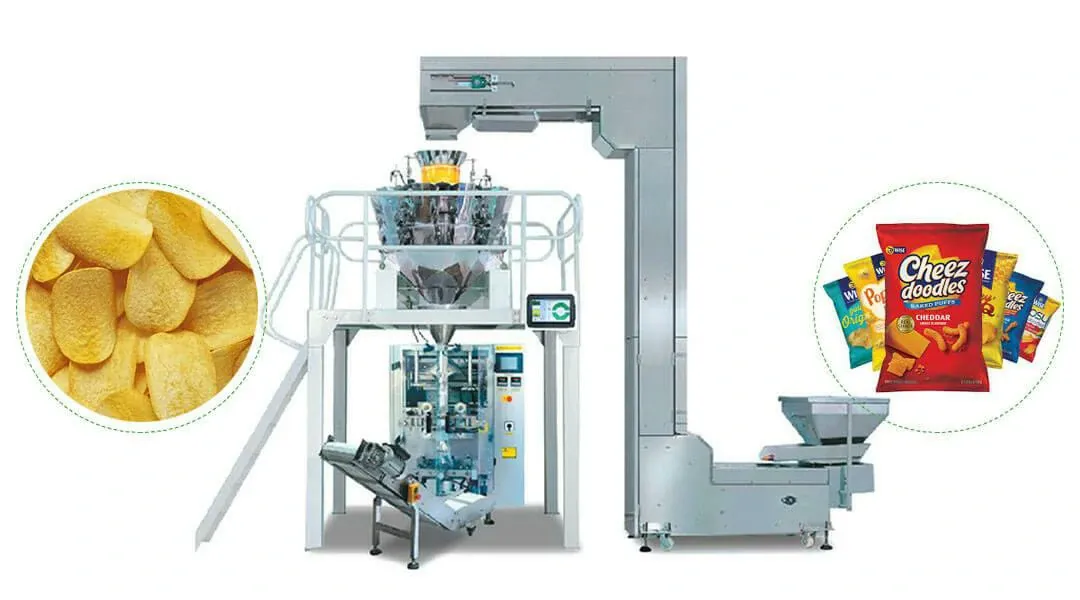

1. Put the potato chips/french fries/banana chips on the vibrating feeder.
2. The Z-type elevator will convey the product to the input hopper of the weighing system.
3. The weighing system will automatically weigh the product according to the preset figures.
4. The qualified product will fall into the bags for the sealing process.
5. The packaged product will be discharged.
| Name | Automatic Potato Chips Packing Machine |
| Packing bag size | W:80-350mm L:100-350mm |
| Packing speed | 16-70bags/min (Depends on products'type and filing volume) |
| Dimensions | L4500×W2820×H3700mm(SW-D8200) |
| Gross Weight | 1800kg |
| Air consumption | 0.6-1.2m²/min |
| Precision | ±1g(<100g) 士1%(>100g）Depending on the material |
| Voltage | 380v/220V |
| Total power | 2.3-7.5KW |
| Packing weight | 30-5000g (General Range) |
Automatic Potato Chips Packaging Equipment Features
1.Fastinpacking, high efficiency
2. Full computer control system, human-machine interface, large touchscreen display, easy operation, intuitive and efficient.
3. Adopting servo film conveyor system, horizontal seal servo control, accurate positioning, excellent performance.

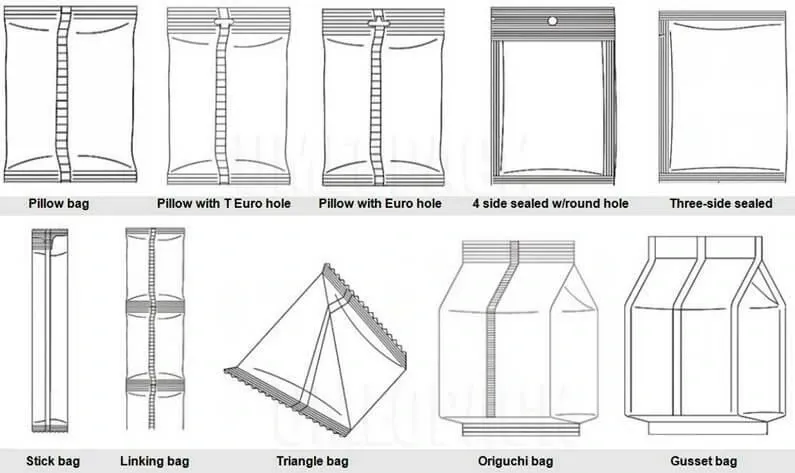

4. The machine can make pillow or vertical bag according to customer's requirements.
Automatic French Fries Packaging Machine Application
1. Automatic potato chips bagging machine is widely used in automatic potato chips production plant and frozen french fries production line.
2. Automatic french fries/ potato chips packaging machine can also be used for the quantitative weighing and packaging of peanuts, pistachios, melon seeds,jelly.
biscuits,candy.chocolate,pet food,puffed food,ironware,plastic parts and other granulate,flaked,strip, materials with an irregular shape.
Please let us know the material you need to package, as well as the bag type and dimensions.
Equipped with a Siemens PLC system, the machine offers a user-friendly interface for easy parameter settings, real-time monitoring, and smooth operation. Customizable language options reduce operator errors and simplify management, saving labor costs.
The rotary system saves floor space while improving packaging efficiency. Multiple bags rotate and are filled in sequence, optimizing production layout and increasing throughput without additional equipment.
Adjustable heat sealing provides strong, reliable seals for different film materials, minimizing leakage and protecting product quality while improving line efficiency.

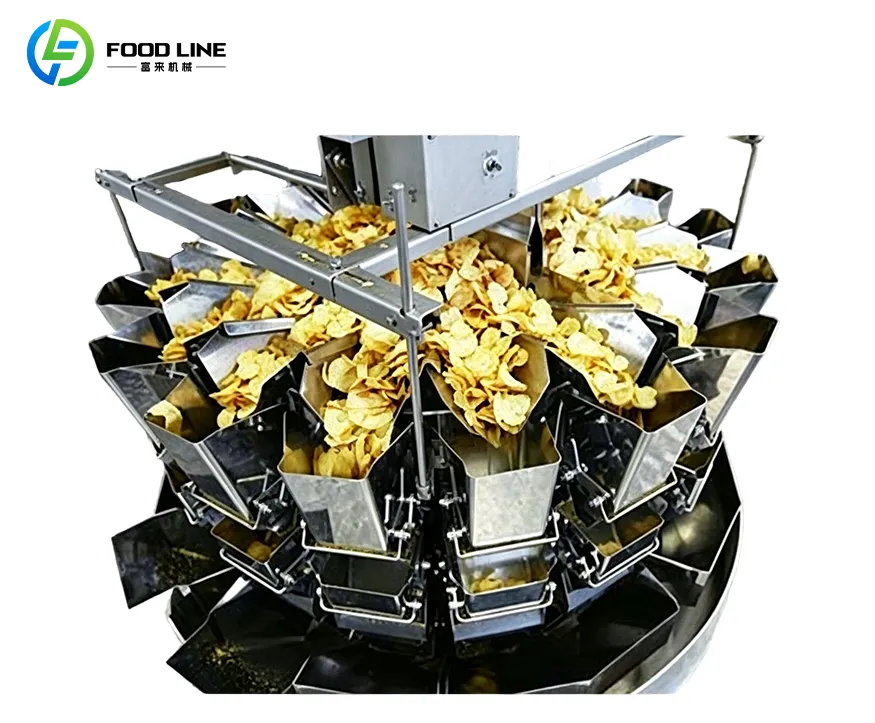

The multihead weigher ensures precise, consistent weighing for granules or granule-powder mixtures, reducing waste and guaranteeing every bag meets weight standards.
The bag rack is quick and easy to adjust, accommodating various bag sizes and types, including stand-up and zipper pouches. Fast changeovers minimize downtime.
Using air suction cups, the pouch opening mechanism ensures smooth and reliable bag opening, including zipper pouches. This reduces errors, speeds up packaging, and supports high-volume production.
